CV

Manoeuvrable for outstanding agility anywhere

CHARACTERISTICS
Technical specifications
Multimedia

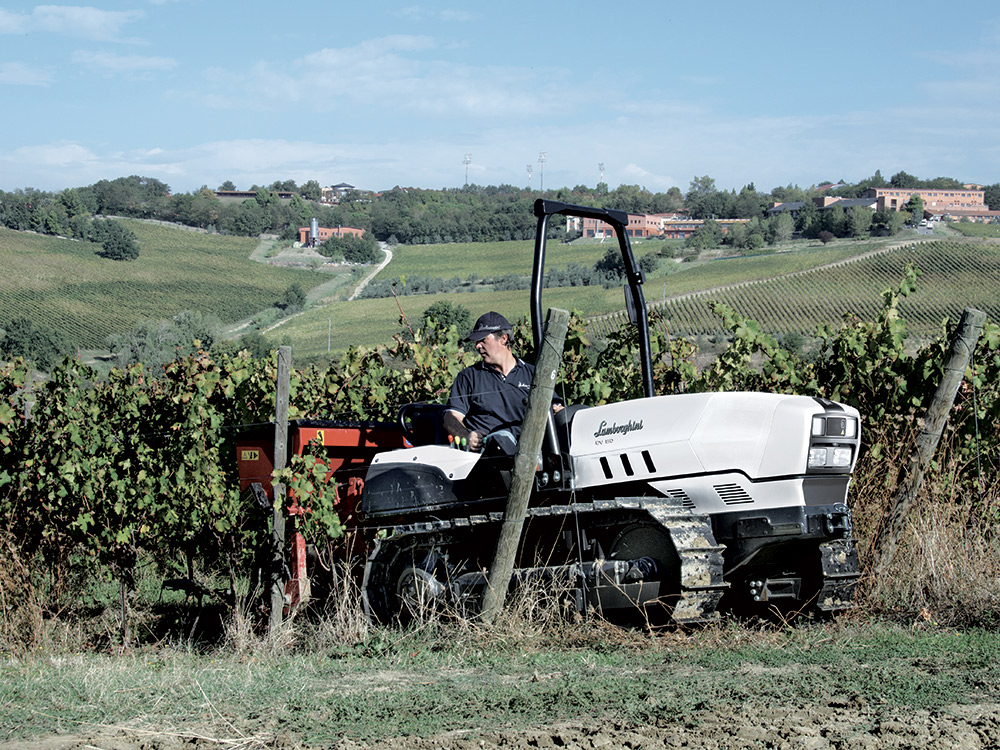

The CV is a highly manoeuvrable tractor that offers the perfect solution to any possible need even in the most challenging conditions.Crawlers have played a key role in the history of Lamborghini Tractors. Over the years these tractors have evolved in conformation and technology to become hard-working tools with innovative style and impressive performance which can tackle different types of vineyard every day easily and comfortably.

Design

Conceived for the toughest conditions.

Read more +

Engine

3,000 cc Euro III Turbo Intercooler engines: tireless performance even when faced with the toughest task.

Read more +

Transmission

Simple, precise manoeuvres: driving is as easy as childs' play.

Read more +

Hydraulic system

A hydraulic system with two separate circuits and dual pumps ensure unparalleled efficiency in all conditions.

Read more +

Cab

The same outstanding comfort as a wheeled tractor, with total stability and vibration insulation.

Read more +

Download brochure Go back up

Expand all

Technical sheetExpandCollapse

	80
Maximum power (hp/kW)	82/60
Homologated power (2000/25/EC) at rated engine speed (hp/kW)	82/60
Maximum torque (Nm)	310
Cylinders / displacement (n°/cc)	3/3.000
Lifting capacity (kg)	2500
Minimum width (mm)	1180

Download technical sheet Compare

TechnologiesExpandCollapse

EquipmentExpandCollapse

C COMPACT

Agile and compact in size, with a total footprint of just 1.18 m and a track chain width of 280 mm, this is the ideal tractor for working in restricted conditions such as the inter-row spaces of a vineyard.The short wheelbase (1.41 m) and narrow platform (560mm) make this an incredibly practical and agile tractor.

N NARROW

Ideal for vineyards of all sizes and for negotiating narrow passages, with a track chain width of just 310 mm.The lowered positions of the driver seat and tanks keep the width of the crawler down to 11,279 mm. A narrow platform of just 560 mm in width and a short wheelbase of 1.430 m make this the definitive specialist tractor.

M MOUNTAIN

Ideal for hilly terrain and steep gradients, the M version of the CV has track chains the same width as the N version (360 m track width available as an option), but a wider platform (760 mm) and a longer wheelbase (1,575 m), with a total vehicle width of 1,434 m. With its low centre of gravity and the size of its tracks, this crawler can keep on going in any terrain conditions, and tackle even the steepest gradients where wheeled tractors simply cannot go.

L LARGE

While retaining the same compact construction of the CV, and the same track and platform dimensions as the M, the L variant features a widened track for a total overall width of 1,602 mm, for increased stability and less risk of slippage.
