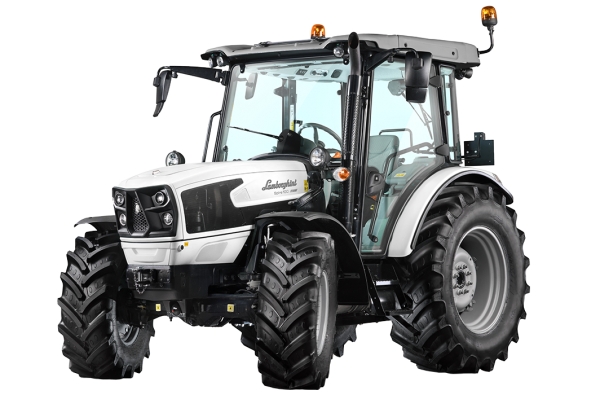

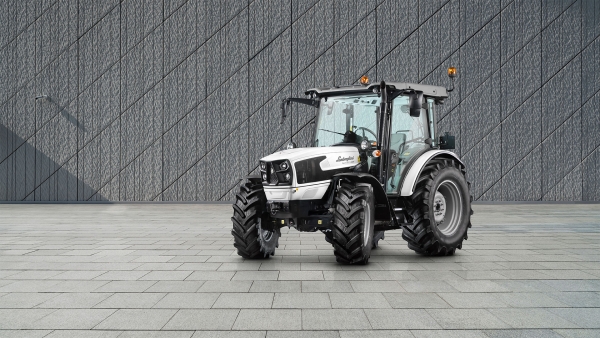

By nature, a Lamborghini tractor has stylish looks that could never be mistaken for anything other than a Lamborghini. But above and beyond its unrivalled elegance, the Spire Trend also boasts state of the art technology conceived for efficiency and reliability, with new 3 cylinder FARMotion 35 engines, a highly efficient transmission, an all-new driver station layout and many other innovative new features.
Additional Info
- Subtitle 70-80-90-100
- claim Unmistakeable style, outstanding productivity.
-
design intro

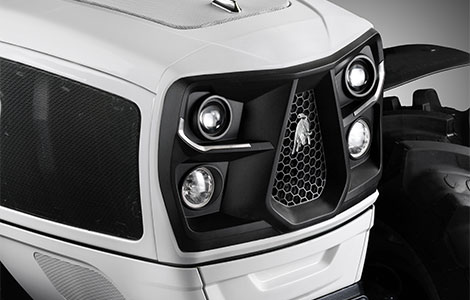

Eclectic, eye-catching looks.
-
design
With the sinuous, aggressive forms of the Lamborghini design language, Spire Trend tractors flaunt a stylish elegance that stands apart from the crowd in any situation. The low profile cowl, the design of the air intakes and the intelligent configuration of the lights hint at the painstaking attention to detail that went into the project for the Spire Trend, to accentuate the premium quality typical of the Lamborghini Trattori brand.
-
engine intro

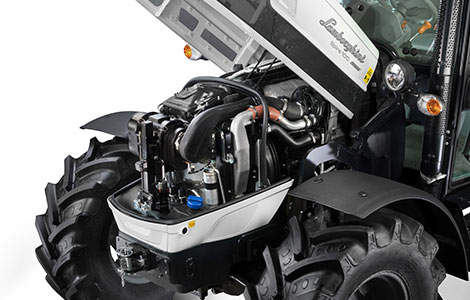

A modern, compact and efficient engine.
-
engine
The new Spire Trend is powered by the latest generation 3 cylinder FARMotion 35 engine, a powerplant conceived specifically for farming with significantly more compact dimensions and lower noise emissions and fuel consumption than before. The new configuration of the heads and combustion chambers, combined with 2,000 bar Common Rail fuel injection, improve combustion efficiency, maximising engine performance while reducing fuel consumption. Thanks to electronically controlled external EGR exhaust gas recirculation combine with a DOC+DPF (70-80 models) or DOC+DPF+SCR (90-100 models), FARMotion 35 engines comply with Stage V emissions control regulations.
-
transmission intro

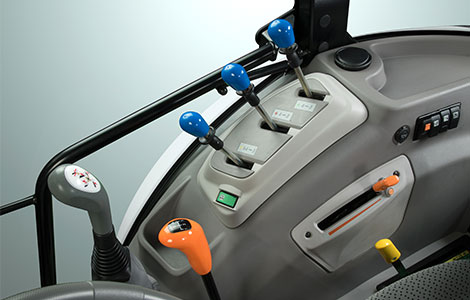

The right ratio for every job.
-
transmission
Spire Trend tractors are offered with a choice of different transmission configurations to cater for any possible need. The base variant consists of a modern 5 speed gearbox with 3 ranges. As an option, a splitter (controlled from a lever situated conveniently under the steering wheel) may be added to double the number of forward speeds offered, increasing the number of ratios available from 15+15 to 30+15. Tractors equipped with Powershuttle can be even fitted with a Hi-Lo 2-Powershift steps, while as standard offers always Stop&Go, ComfortClutch and SenseClutch functions. For maximum traction and draft in all conditions, electrohydraulically engaged all-wheel drive and differential locks are standard.
-
hydraulic system intro

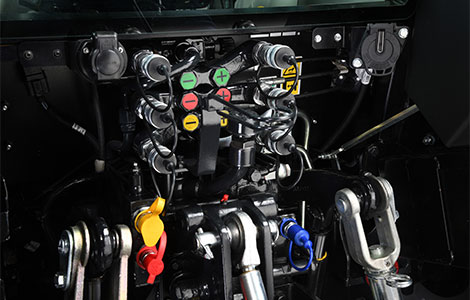

Comprehensively equipped with high performance features.
-
hydraulic system
For maximum productivity with any implement, Spire Trend tractors are equipped as standard with a 56 l/min hydraulic pump and with 4-way (or optional 6-way) mechanically controlled auxiliary distributors. For uncompromised safety and impeccably smooth steering action even at the lowest engine speeds, the steering circuit is fed by a dedicated, separate 20 l/min pump. The mechanically controlled rear lift has a maximum capacity of 2,500 Kg as standard, which may be increased to 3,500 Kg as an option. In addition is now available the EasyLift control that allows to raise and lower the implements using a single button on the consolle. The PTO comes as standard with 540 rpm and 540 ECO speed modes, while a 1,000 rpm mode or ground speed mode may also be added as an option. A practical lever lets the driver engage the dedicated PTO clutch precisely and progressively.
-
cab intro

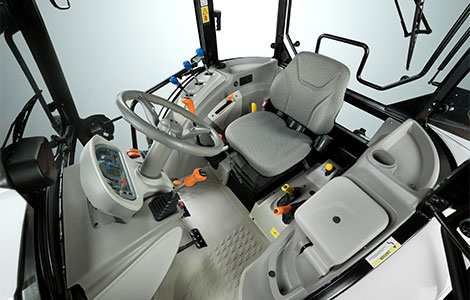

Class beating comfort and ergonomics.
-
cab
The stylish and supremely comfortable new cab of Lamborghini Spire Trend tractors offers extraordinary visibility and features the most user-friendly control layout in its class. The entire driver station has been optimised to offer the operator a rational and ergonomic working environment. The driver seat is equipped with mechanically sprung suspension (or, as an option, air-sprung suspension) adjustable to perfection to suit the weight of the operator. All the controls are right at the driver's fingertips, while the new analogue/digital display moves together with the adjustable rake steering column to ensure that all the main operating parameters of the machine are clearly visible at all times.
- Sheet Version number 70| 80 | 90 |100
- Maximum power (hp/kW) 48,9/66|55,8/76|67/91|75/102
- Homologated power (2000/25/EC) at rated engine speed (hp/kW) 48/65|55,2/75|63,5/86|71,1/97
- Maximum torque (Nm) 297|341|372|417
- Cylinders / displacement (n°/cc) 3/2887
- Lifting capacity (kg) 2500/3500
- Minimum width (mm) 1882
- Weight with cab (kg) 3250|3350
- TECHNOLOGIES EGR, DOC, Stop & Go, Over Speed, ALL-WHEEL BRAKES, PARK-BRAKE
- Weight with cab (kg) 3250|3350
-
Categorization
- Categorization Power Range Min 70
- Categorization Power Range Max 100
- Categorization Track Width Min 1795
- Categorization Track Width Max 1882
- Categorization Cylinders n. 3
- Categorization Trasmission MECHANICAL
- Stock Availability N
How do customers benefit by using Fleet Management?
Written by Dario LobassoCopy of Call up machine data from anywhere at any time
Written by Dario LobassoAs the application is browser-based, SDF Fleet Management allows you to access all important data from your machine at all times and from any location through your smart device.
No matter if you’re a farmer, contractor or any other user – working with standard file formats is particularly important. It's a huge advantage: it makes data exchange between different end points very easy. The benefits are:
- Import and export data for your guidance system
- Manage your tasks to have an overview and insight into the data of work processes
- You can complete your documentation and send it to any end point
- Share data between other farmers or contractors .
The iMonitor3 strictly works with open and standardised file formats, which guarantees the highest reliability: - shape: using this data format you can import and export field boundaries and application maps
- ISO-XML: the iMonitor provides ISOBUS TC-BAS functionality which ensures that the documentation is in ISO-XML data format. This includes all total values that are relevant to the activity performed. The benefit obtained is compatibility for sharing data, e.g. between a farm management system through the iMonitor or with other manufacturers and providers. Tasks can easily be imported to the task controller of the iMonitor3 and/or the finished documentation can be exported afterwards. Thanks to this standardised exchange format, you as a customer can decide which software product best suits your business. In combination with a corresponding software application you can share data with others:
- Farm master data o Jobs (taskdata)
- Field boundaries
- Guidelines
- Application maps
Note: some of these data require a GNSS- position, e.g. provided by a SR20 receiver
We know it’s fundamental to always keep an overview of all work processes. As keeping documentation is becoming more and more important, the iMonitor3 helps you organise your data according to a very clear and simple structure. This ensures that the management of fields (including boundaries), guidelines and all tasks are accomplished in a coordinated manner. Thanks to our solutions, keeping relevant documentation is no longer a chore but an opportunity to improve work processes, in financial terms, too.
THE CENTRAL CONTROL ELEMENT.
Manage your agronomic data: central control element for Data Management.
Written by Dario LobassoThe iMonitor3 is our machines' core element for the performance of several important functions. We have integrated the entire range of SDF Data Management's technology and applications on a single terminal, allowing you to work and manage your agronomic data. Depending on the size of the screen (8 inch or the large 12 inch display), the iMonitor3 provides many functions that are already included in the standard configuration:
Connect your agricultural machinery: Data exchange is a core element for farm management.
Written by Dario LobassoAgricultural machinery has developed over the last years and thanks to digitisation, machines have become smarter. Data exchange has become a core element of today’s farm management. The offer for agronomic services has significantly increased and plenty of software applications for different uses are available on the market. To ensure reliable interaction between all players, it is very important to speak a common “digital language” – this is why standardised data formats are fundamental. For an online exchange of agronomic data, interfaces have to be deployed in both software applications as well as in our SDF products. Instead of developing several different interfaces, SDF joined, as a stakeholder, a group of manufacturers with the goal to develop one single and common interface for online data exchange:
CROSS-MANUFACTURER ONLINE DATA EXCHANGE
Agrirouter is a universal data exchange platform that addresses a core digitalisation issue in agriculture: it allows farmers and contractors to exchange data between machinery and agricultural software applications from different manufacturers. Agrirouter simplifies data exchange and therefore work processes, reduces office work and improves financial efficiency, leaving more time for other tasks. Each user can create his or her own free personal Agrirouter account and configure it individually. Benefits:
- Reliable cross-manufacturer data transfer thanks to a common interface
- Wide range of partners: machine manufacturers, software providers and any other external sources. New members are always welcome to join
- Transparency: you remain the owner of your own data (no data storage)
- You decide where your data are sent through predefined and coordinated routes, e.g. from the iMonitor3 to a FMIS.
With the Agrirouter account, you can connect your machines to all applications from Agrirouter partners. A list of partners and additional information can be found at www.my-agrirouter.com. To share data within our machines, SDF integrated an application in the iMonitor3 that can upload and download data from and to Agrirouter. For mobile data transfer, an internet connection is required, which can be provided by our CTM. Existing machines can also be retrofitted with the required SDF components in order to connect to Agrirouter.
