Engineered for total compatibility with R2 R2 Target R3 R4 R6 and NITRO tractors the factory-fitted kits allowing the installation of Lamborghini front loaders are available as two versions: Light Kit and Ready Kit. With a maximum lift height of up to four metres hydraulic or mechanical self-levelling and mechanical or electrohydraulic controls these front loaders offer the ideal solution for any situation.
Additional Info
- Claim Integrated strength
-
MATERIALS AND PROCESSES intro
Superior manufacturing processes and materials.
-
MATERIALS AND PROCESSES
The superlative quality of Lamborghini front loaders is a result of state of the art, functional design and advanced manufacturing technology.
The choice of materials used - such as the fine grain steel used for the forged link arms - is also crucial in this quality, while advanced production processes (such as assembly, finishing and painting), contribute to creating highly durable components.
Another important factor of the materials used is their lightness, which considerably reduces the overall weight of the loader and reduces the strain sustained by the tractor. -
COMFORTABLE TO DRIVE AND WORK WITH intro
When you use a Lamborghini front loader, the results are clearly visible: as is the work area in front of and above the tractor.
- COMFORTABLE TO DRIVE AND WORK WITH The flat cross section of the link arms is an engineering tour de force which, combined with the optimised layout of the hydraulics along the profile of the loader and the high visibility roof, gives the driver a clear view of the work area, for superior manoeuvrability in complete safety. A reliable, safe automated system lets the operator hitch the link end easily from the driver seat. And with the Comfort Drive system which significantly reduces pitching during transport, Lamborghini front loaders also optimise comfort and safety.Der Anschluss der Endgeräte erfolgt bequem vom Fahrersitz über ein zuverlässiges und sicheres Automatiksystem. Dank Comfort Drive System, das die Stampfbewegungen während der Fahrt deutlich reduziert, bieten die Frontlader von Lamborghini ideale Betriebsbedingungen und Sicherheit.
-

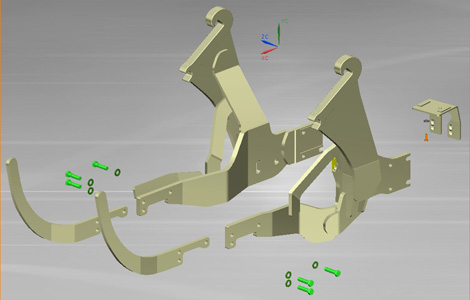

LIGHT KIT intro
The "Light Kit" consists of the entire mounting frame for the loader.
-

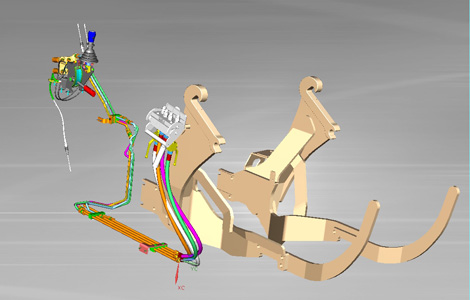

READY KIT intro
As well as the entire mounting frame, the "Ready Kit" also includes the hydraulic and electrical systems for the loader and the control joystick.
The CF is a particularly sturdy compact crawler designed specifically for working between crop rows and for general tasks.Crawlers have played a key role in the history of Lamborghini Tractors. Over the years these tractors have evolved in conformation and technology to become hard-working tools with innovative style and impressive performance which can tackle different types of fruit orchard every day easily and comfortably.
Additional Info
- Subtitle 90 – 100
- claim Sturdy, compact and unstoppable
-
design intro
Conceived for the toughest conditions.
-
design
Engineered with minute attention to detail in every aspect, including the most fundamental of all: the track chains.These tracks run on five flanged bottom rollers designed to withstand high axial loads. The specially designed profile of the pinions ensures even chain wear for extended durability; while the spoke configuration of the pinions prevents the build-up of mud and soil, protecting the machine against damage.
-
engine intro
4,000 cc Euro III Turbo Intercooler engines: they won't let you down, even in the heaviest duty jobs.
-
engine
SDF high pressure injection system (one of the most advanced in existence today), “Powercore” air filtration system and programmable engine speed function.The electronic governor also ensures immediate responsiveness and greater reliability.Superb performance matched by outstanding comfort, with minimised engine noise.
-
transmission intro
Simple, precise manoeuvres: driving is as easy as childs' play.
-
transmission
With a sixteen plus sixteen speed mechanical transmission (with underdrive or supercreeper gear for low speed applications), CF crawlers manoeuvre smoothly for maximum productivity even under very high load. A generously sized central clutch and a dedicated radiator to maintain constant oil temperature also ensure constant productivity in all conditions. The steering and brakes are controllable individually for each crawler track from the pedals or levers on the dashboard. Two-speed PTO (540/540ECO rpm) with electrohydraulic clutch .
-
hydraulic system intro
A hydraulic system with two separate circuits and dual pumps ensure unparalleled efficiency in all conditions.
-
hydraulic system
The main circuit feeds the lift and the five auxiliary distributors with a 52 l/min pump, while the secondary circuit, with a delivery of 25 l/min, feeds the brakes, the steering and PTO, as well as providing lubricant oil flow for all the transmission components.Mechanical rear lift with draft and position control and three point linkage, available as standard or Heavy Duty variants to cater for all possible applications.
-
cab intro
The same outstanding comfort as a wheeled tractor, with total stability and vibration insulation.
-
cab
The platform is mounted on four silent-block rubber mounts which absorb vibration and noise to further improve driver comfort.The controls are clearly and functionally laid out, while anti-glare screen of the instrument panel is clearly legible in all light conditions.Practical grab handles and the slip-proof finish of the floor make access to the platform particular easy and safe.
- Sheet Version number 90|100
- Maximum power (hp/kW) 85/62,5|95/70
- Homologated power (2000/25/EC) at rated engine speed (hp/kW) 85/62,5|95/70
- Maximum torque (Nm) 345|373
- Cylinders / displacement (n°/cc) 4/4000|4/4000
- Lifting capacity (kg) 2800|2800
- Minimum width (mm) 1360|1460
- TECHNOLOGIES ELECTRONIC ENGINE GOVERNOR, B100, HRT
- Weight with cab (kg) 4280|4280
-
C COMPACT
Agile and compact in size, with a total footprint of just 1,360 mm and a track chain width of 310 mm, this is the ideal tractor for working in restricted conditions such as the inter-row spaces of the narrowest fruit orchard.
-
N NARROW
Ideal for vineyards and negotiating narrow passages, with a track chain width of just 360 mm.The lowered positions of the driving seat and tanks keep the width of the crawler down to 1,460 mm. Broad suspended platform, and a total width of 1,460 mm.
-
M MOUNTAIN
Ideal for hilly terrain and steep gradients, the M version of the CF may be equipped with track chains either 400 or 450 mm in width, and features a Heavy Duty bogies and a broad platform, for a total vehicle width of 1,750/1,800 mm. With its low centre of gravity and long track chains, this crawler can keep on going in any terrain conditions, and tackle even the steepest gradients where wheeled tractors simply cannot go.
-
Categorization
- Categorization Power Range Min 90
- Categorization Power Range Max 100
- Categorization Track Width Min 1050
- Categorization Track Width Max 1350
- Categorization Cylinders n. 4
- Categorization Trasmission MECHANICAL
Conceived to comprehensively answer to the need for a simple practical and functional tractor: RF Target is ideal for working in specialised applications with every possible type of implement. It is the perfect solution for owners who need a specialised machine but with low running costs.
Additional Info
- Subtitle 60 – 70 – 80 – 80.4 – 90 – 100
- claim Specialised simplicity
-
design intro
Intelligently designed not only to maximise performance but also to significantly minimise overall dimensions.
-
design
Extraordinary compact, slim construction; the single piece hood, and rounded corners of the roof, as well as contributing an elegant, modern looks, makes the tractor simple and safe to drive through narrow rows without damaging the crop.
-
engine intro
1,000 cc series TIER III engines: compact, tough and reliable.
-
engine
Three or four cylinder units with simple Turbo or Turbo Intercooler forced induction and electronic governor; SDF engines are designed to work tirelessly for hours with low running costs and limited maintenance times.Injection system with individual pump for each cylinder and electronic governor. Much more advanced that conventional rotary pump systems, this solution improves engine power in return for very low fuel consumption.The system also lets the driver set and store an engine speed, which the electronic control unit then maintains at a constant value in any condition and even with varying load, for constant, uniform results.
-
transmission intro
A highly efficient transmission with perfectly spaced ratios to ensure the ideal gear at all times.
-
transmission
The standard transmission configuration with mechanical underdrive offers twenty plus ten speeds, which are increased to thirty plus fifteen with the addition of a supercreeper gear. Total safety is ensured by the integral four-wheel braking system with four wet brake discs and the sturdy two pillar ROPS. These transmissions are available with 540/540ECO/1,000 PTO variants for effective, extremely reliable power delivery.A synchronised PTO, for use with driven axle trailers, is also available for towing applications on gradients.
-
hydraulic system intro
Extraordinary manoeuvrability with independent hydraulic steering circuit, which ensures smooth, responsive steering action in all conditions.
-
hydraulic system
The optimised axle design, geometry of the machine as a whole and shape of the hood allow steering angles of up to 60 degrees, making the tractor extraordinarily easy to manoeuvre and agile in all situations.The 3,000 Kg capacity of the rear lift means that even very heavy implements can be used.Completing the hydraulic system are four or six way hydraulic distributors and an auto-hitch three point linkage.
-
cab intro
A driver zone conceived for unparalleled practicality and comfort.
-
cab
The roomy and comfortable driver zone features shift levers situated to the right hand side of the driver, making the driver seat easier and safer to get into and out of.Suspended pedals and an adjustable steering wheel ensure the ideal driving position. For improved comfort, special deflectors in clear polycarbonate protect the driver against soil and mud debris and reduce noise while ensuring an unobstructed view of the front wheels.
- Sheet Version number 60|70|80|80.4|90|100
- Maximum power (hp/kW) 62/46|72/53|82/60|80/59|85/63|96/71
- Homologated power (2000/25/EC) at rated engine speed (hp/kW) 62/46|72/53|82/60|80/59|85/63|96/71
- Maximum torque (Nm) 240|265|310|325|345|373
- Cylinders / displacement (n°/cc) 3/3000|3/3000|3/3000|4/4000|4/4000|4/4000
- Lifting capacity (kg) 2600|2600|2600|3000|3000|3000
- Minimum width (mm) 1514|1514|1514|1514|1514|1514
- TECHNOLOGIES ELECTRONIC ENGINE GOVERNOR, ALL-WHEEL BRAKES, B100, HRT
- Weight with ROPS (kg) 2500|2500|2500|2630|2630|2630
-
Categorization
- Categorization Power Range Min 60
- Categorization Power Range Max 100
- Categorization Track Width Min 1.058
- Categorization Track Width Max 1.608
- Categorization Cylinders n. 3, 4
- Categorization Trasmission MECHANICAL
- Stock Availability N
Essential intuitive and reliable: these are the greatest strengths of the Rekord range.Ideal for small farms but also a great addition to work alongside high power machines in a medium to large-scale farm. Outstanding versatility agility and manoeuvrability make these ideal multi-purpose tractors. The range consists of four models available as either two or four wheel drive variants: Rekord 50 Rekord 60 Rekord 70 and Rekord 4.80.
Additional Info
- Subtitle 50 – 60 – 70 – 4.80
- claim Setting new standards for multi-role capability and reliability
-
design intro
Functionality matched by high quality details and superior style.
-
design
Efficiency and productivity with style, with a simple but attractive body design. Every detail has been defined with painstaking care, from the single piece hood to the shape of the lights.
-
engine intro
Power and unparalleled reliability.
-
engine
SDF 1,000 Series Euro I engines, designed to work tirelessly for hours with low running costs and limited maintenance times.These liquid-cooled, three and four cylinder Turbo Intercooler units are engineered and built to deliver superlative performance in all conditions in return for low specific fuel consumption figures. High pressure injection system (1,400 bar) with very short injection times, and HRT hydraulic tappets for injection timing adjustability.The unique configuration of the engine produces a high degree of swirl, mixing the incoming air perfectly with the fuel and optimising combustion.70 litre fuel tank for extended autonomy.
-
transmission intro
A mechanical transmission with intelligently spaced ratios, for maximum efficiency and productivity.
-
transmission
Rekord is equipped with a synchromesh gearbox with twelve forward speeds and three reverse speeds, for a top speed of 30 Km/h. The two speed PTO (540 /540ECO) makes full use of the power available efficiently and reliably. Front and rear differential locks for superior traction. Heavy duty planetary reduction gear units for working with rear implements in complete safety.
-
hydraulic system intro
Effortless, smooth steering action for unparalleled safety.
-
hydraulic system
The hydraulic system in Rekord 50-60-70 models features a 33 l/min pump and two/four way auxiliary distributors, while the system equipping the Rekord 4.80 has a 45 l/min pump and four/six way distributors.The hydrostatic steering system is fed by an independent pump, for impeccably smooth steering action.The hydraulic lift features position, draft, floating and mixed control modes, while the sturdy construction of the three point linkage gives it an impressive capacity of 3,000 Kg, making it possible to use a wide variety of implements. Safety is ensured by the integral four-wheel braking system with six wet brake discs and a folding two pillar ROPS.
-
cab intro
An ergonomic, spacious work environment for superior functionality and comfort.
-
cab
With an intelligent design and high quality materials and features, the driver area boasts numerous details conceived to make working easier: such as the silencer situated under the platform, suspended pedals, the ergonomic layout of the lateral levers and the clearly legible instrumentation, which provides the driver with all the information needed to control the tractor effectively. Regular maintenance operations are also made simpler by the button on the front of the tractor which opens the hood and allows unrestricted access to the engine components.
- Sheet Version number 50|60|70|4.80
- Maximum power (hp/kW) 46,5/34,2|55/40,5|70/51,5|73/53,7
- Maximum torque (Nm) 169,9|204|261|270
- Cylinders / displacement (n°/cc) 3/3000|3/3000|3/3000|4/4000
- Lifting capacity (kg) 3000|3000|3000|3000
- TECHNOLOGIES ALL-WHEEL BRAKES, B100, HRT
- Weight with ROPS (kg) 2100|2420|2420|2520
-
Categorization
- Categorization Power Range Min 50
- Categorization Power Range Max 75
- Categorization Track Width Min 1.740
- Categorization Track Width Max 1.840
- Categorization Cylinders n. 3
- Categorization Trasmission MECHANICAL
- Stock Availability N

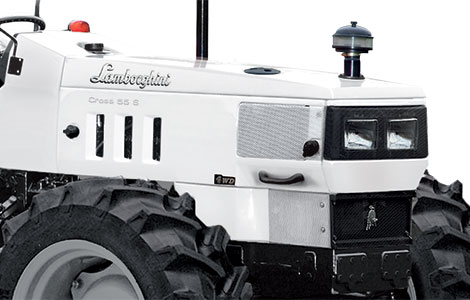

Versatility is a crucial prerequisite for a tractor especially when it is the main workhorse of a small farm or performs a support role to higher power tractors in a medium to large farm.With a short wheelbase and extraordinary agility and manoeuvrability CROSS models offer the perfect solution.The range consists of the CROSS 55 and the CROSS 60 both of which available with two or four wheel drive.
Additional Info
- Subtitle 55 – 65
- claim Essential in appearance, big on performance
-
design intro
An essential design that embodies functionality. -
design
Compact structure and a design with minimalist, clean lines emphasising the efficiency of the machine. Good style and functionality need no decoration, and the CROSS embodies non-nonsense capability, but with all the understated elegance and exclusive details typical of Lamborghini tractors.
-
engine intro
SDF 1,000 Series Euro I engines: competitive simplicity.
-
engine
What make the CROSS so special are its low running costs and limited maintenance times. On top of all this, of course, is the impressive performance from its liquid-cooled, three cylinder turbo engines designed and built to deliver superlative productivity in all conditions in return for low specific fuel consumption figures. The unique configuration of the engine produces a high degree of swirl, mixing the incoming air perfectly with the fuel and optimising combustion.56 litre fuel tank for extended autonomy.
-
transmission intro
A transmission that does everything you ask in total safety.
-

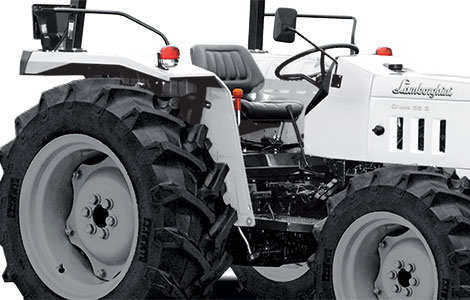

transmission
CROSS is equipped with a synchromesh gearbox with twelve forward speeds and three reverse speeds, for a top speed of 30 Km/h. The two-speed PTO (540/540ECO) makes full use of the power available efficiently and reliably. Front and rear differential locks for superior traction. Superlative active and passive safety is ensured by an integral braking system with six wet brake discs (two on front axle shafts and four on rear axle shafts).
-
hydraulic system intro
Effortless functionality.
-
hydraulic system
The hydraulic system has a 33 l/min pump and two/four way auxiliary distributors.Contributing to the durability and reliability of the hydraulic system, the hydrostatic power steering system is fed by an independent pump which ensures light, smooth steering action for maximised productivity even at low engine speeds. The hydraulic lift features position, draft, floating and mixed control modes, while the sturdy construction of the three point linkage gives it an impressive capacity of 3,000 Kg, making it possible to use a wide variety of implements.
-
cab intro
A comfortable, functional work environment.
-
cab
Every aspect of the driver zone is optimised to simplify your job: from the exhaust situated under the platform to the suspended pedals, and from the ergonomic position of the lateral levers to the clear and comprehensive instrumentation of the dashboard The spacious driver area features a two pillar ROPS and a mechanically sprung driver seat, while access to the platform is facilitated by an anti-slip step.Regular maintenance operations are also made simpler by the button on the front of the tractor which opens the hood and allows unrestricted access to the engine components.
- Sheet Version number 55|65
- Maximum power (hp/kW) 50/37|55/40,5
- Maximum torque (Nm) 234|234
- Cylinders / displacement (n°/cc) 3/3000|3/3000
- Lifting capacity (kg) 1500|1500
- TECHNOLOGIES ALL-WHEEL BRAKES
- Weight with ROPS (kg) 2150|2150
-
Categorization
- Categorization Power Range Min 55
- Categorization Power Range Max 65
- Categorization Track Width Min 1.400
- Categorization Track Width Max 1.700
- Categorization Cylinders n. 4
- Categorization Trasmission MECHANICAL
- Stock Availability N
